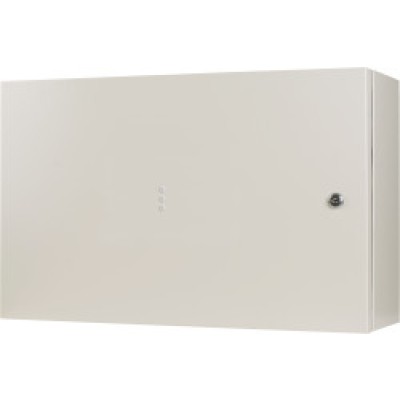

Pertronic Battery Cabinets are available in two sizes to match the Pertronic range of rack cabinets.

Features

• Complete with key-lock and 003 key
• May be installed with hinge at left- or right-hand side (see note)
• Suitable for 2 x 12 volt batteries up to 38 amp-hour
• Material: 1 mm mild steel
• Finish: Powder coat, hybrid cream wrinkle HL532/8160
• Hinges:
• BATCAB-550, piano type, steel
• BATCAB-575, lift-off type, chrome-plated brass with stainless steel pintles
• Four mounting holes with raised standoff domes in rear panel
• 2 x 32 mm knockouts in rear panel
• 1 x 32 mm knockout, right hand side of the top panel (see note)
• Internal bracket available for large (~38 Ah) batteries
• Designed for interior use

NOTE: When the battery cabinet is installed with the hinge at right:

1. The single knockout will be in the left-hand side of the lower panel

2. For large (~38 Ah) batteries, the rear support needs to be modified

---
