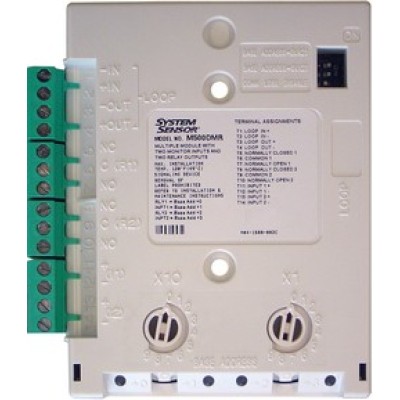

The System Sensor M500DMR Analogue Addressable Dual Input, Dual Output Module supervises two input circuits from external switch devices and also provides two unmonitored single pole volt-free changeover contacts for external devices. Input channels are capable of both latched and analogue supervision: there are three separate latched states, normal, open circuit and combined alarm/short. The analogue supervision continuously monitors the supervised circuit, returning a signal proportional to the circuit resistance.
The module may be mounted in either a wall box, on a DIN rail, or inside any type of enclosure. Irrespective of the chosen mounting method, the address switch is both visible and accessible for selection.
To assist maintenance and fault-finding, both the LEDs and the address switches are visible without removing the surface mounting box cover.
The M500DMR incorporates a loop isolator that isolates the loop in and loop out connections in the event of a short circuit on either loop connection.

Features

• Dual Input, Dual Output Module
• Input 2 (I2) and Relay 2 (R2) may be disabled individually using module DIP switches
• Incorporates an Isolator for the Analogue Addressable Loop
• Uses 2, 3 or 4 module address spaces
• Common mechanical platform for box, panel and DIN rail mount versions
• Decade Address switches visible and selectable in two planes
• Wide angle LED visibility

---
