Weatherproof Equipment Cabinets

Products » Miscellaneous
Pertronic EC-WP

EC-WP

ENQUIRE ABOUT THIS PRODUCT

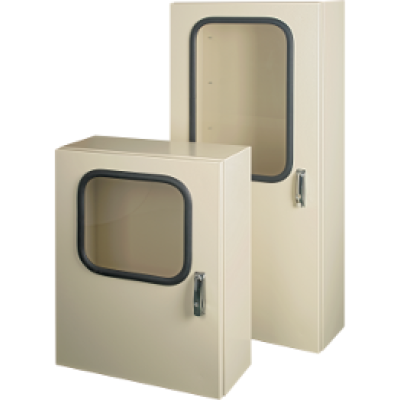

Industrial strength weatherproof cabinets, purpose designed and built for Pertronic fire alarm control panels.

These cabinets include mountings for Pertronic 19-inch rack plates and gear plates, compatible with Pertronic fire alarm panels and other products. No additional mounting hardware or brackets are needed to build a Pertronic fire alarm control panel in one of these equipment cabinets.

Designed for use in challenging environments, these equipment cabinets are suitable for industrial, mining, and general outdoor applications.

Features

  • Industrial strength robust construction
  • Window or windowless options available
  • Independently tested and verified compliant with Standard AS 60529: Degrees of protection provided by enclosures.
    • IP65 rating with windowless door
    • IPX5 rating with window in the door
  • Door fitted with positive double action locking swing handle
  • CL003 Key

Ordering Information

Product Code

Description

Product Code: EC800X19-PWP
Description: Equip Cabinet 16U, 800Hx600WX260D, Powdercoated St Weatherproof (IP65) with gearplate, NO window
Product Code: EC800X19-PWP+W
Description: Equip Cabinet 16U, 800Hx600WX260D, Powdercoated St Weatherproof (IPX5) with gearplate & window
Product Code: EC800X19-SWP
Description: Equip Cabinet 16U, 800Hx600WX260D, 316 Stainless St Weatherproof (IP65) with gearplate, NO window
Product Code: EC800X19-SWP+W
Description: Equip Cabinet 16U, 800Hx600WX260D, 316 Stainless St Weatherproof (IPX5) with gearplate & window
Product Code: EC28U-PWP
Description: Equip Cabinet 28U, 1330Hx600Wx260D, Powdercoat Steel, weatherproof (IP65) with gearplate, NO window
Product Code: EC28U-PWP+W
Description: Equip Cabinet 28U, 1330Hx600Wx260D, Powdercoat Steel, weatherproof (IPX5) with Window & Gearplate
Product Code: EC28U-SWP
Description: Equip Cabinet 28U, 1330Hx600Wx260D, Stainless Steel, weatherproof (IP65) with gearplate, NO window
Product Code: EC28U-SWP+W
Description: Equip Cabinet 28U, 1330Hx600Wx260D, Stainless Steel, weatherproof (IPX5) with gearplate & window
