Dual Input Single Output Module

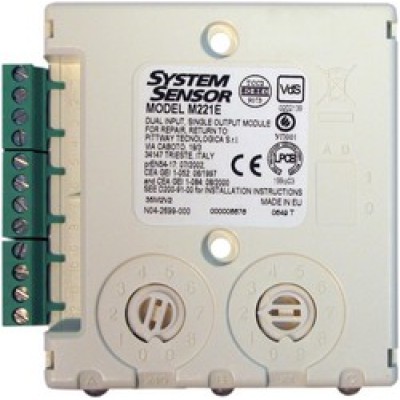

M221E Module
Discontinued product.
This product has been replaced by the M221EA.
The M221E provides supervision of two input circuits from external devices and an unmonitored single pole volt-free changeover contact for external devices. The module features a built-in short-circuit isolator. Input channels are capable of both latched and analogue supervision: there are three separate latched states; Normal, Open-Circuit and Combined Alarm/Short. The analogue supervision continuously monitors the supervised circuit, returning a signal proportional to the circuit resistance.
Features
- M221E Dual-Input / Single-Output Module
- Common mechanical platform for box, panel and DIN Rail mount versions
- Tri-colour LEDs with wide-angle LED visibility
- Built-in short-circuit Isolators
- Decade address switches - visible and selectable in two planes
Ordering Information
Product Code
Description
Availability
Product Code: M221E
Description: AA Module Dual Input, Single Output (Uses M200E-SMB)
Availability: Discontinued
