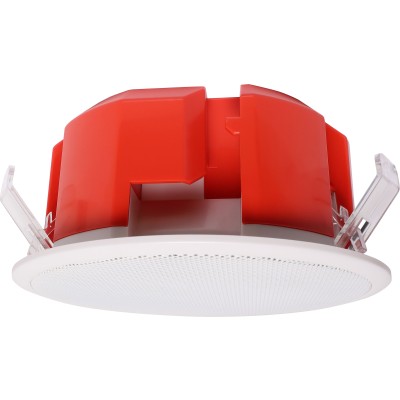

The 100mm Ceiling EWIS Speaker 6W (C2270) is an AS ISO7240.24-certified 100V-Line speaker.

This version completely eliminates cable glands, streamlining the installation cabling process, while a pluggable terminal block simplifies cable termination.

Its depth is just 70mm with an ultra thin bevelled edge and steel coated grille as a premium finish. Its ceiling cutout is 140mm in diameter.

All its components are manufactured from high quality, long lasting, flame retardant materials, and the speaker just 'snap fits' into the ceiling with its 3 way spring latching system.

Features:

• High quality speaker driver developed for BGM, paging and emergency warning applications
• Patented 3-way latching system for a neat, snag-free installation
• 140mm ceiling cutout
• Fitted with 4-way pluggable wire protect terminal for loop in, loop out wiring
• Integral cable channel in rear housing for easy running of connection cables
• Fitted with flame retardant safety cover
• Fitted with supervisory capacitor for line monitoring
• 5 year warranty

---
