Solista LX AS 7240.23 Wall-Mount Strobe

Products » Warning Devices and Systems » VADs & Strobes
Pertronic LX-W-VAD

LX-W-VAD

ENQUIRE ABOUT THIS PRODUCT

The Solista LX Wall-Mount Strobe is a visual alarm device that distributes light throughout a specified volume as defined in AS ISO 7240.23. Designed for installation at a height of up to 2.4 m, the Solista LX Wall-Mount Strobe is certified to AS ISO 7240.23 and EN 54-23.

Features:

  • Current consumption 10 mA - 25 mA (depending on configuration)
  • 7.5 m coverage diameter
  • Coverage switchable to 2.5 m diameter
  • Flash rate configurable, 1 Hz or 0.5 Hz
  • Suitable for 12 VDC, 24 VDC, and 48 VDC (nominal) systems
  • Independently tested and SAI Global StandardsMark certified to AS ISO 7240.23:2014
  • Certified to EN 54-23
  • Approved by VdS, CNBOP and NF
  • These devices flash when provided with a DC power supply of correct voltage and polarity
  • Compatible with the fault supervision system on Pertronic fire indicator panel External Bell & Warning System outputs

Ordering Information

Product Code

Description

Product Code: LX-W-VAD-WBWF
Description: Solista LX Wall VAD AS7240.23 Shallow White Body, White Flash
Product Code: LX-W-VAD-RBRF

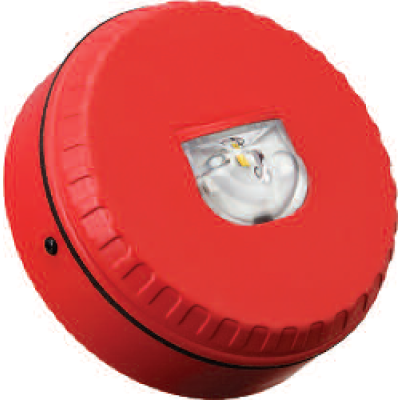

Description: Solista LX Wall VAD AS7240.23 Shallow Red Body, Red Flash
Product Code: LX-W-VAD-RBWF
Description: Solista LX Wall VAD AS7240.23 Shallow Red Body, White Flash
